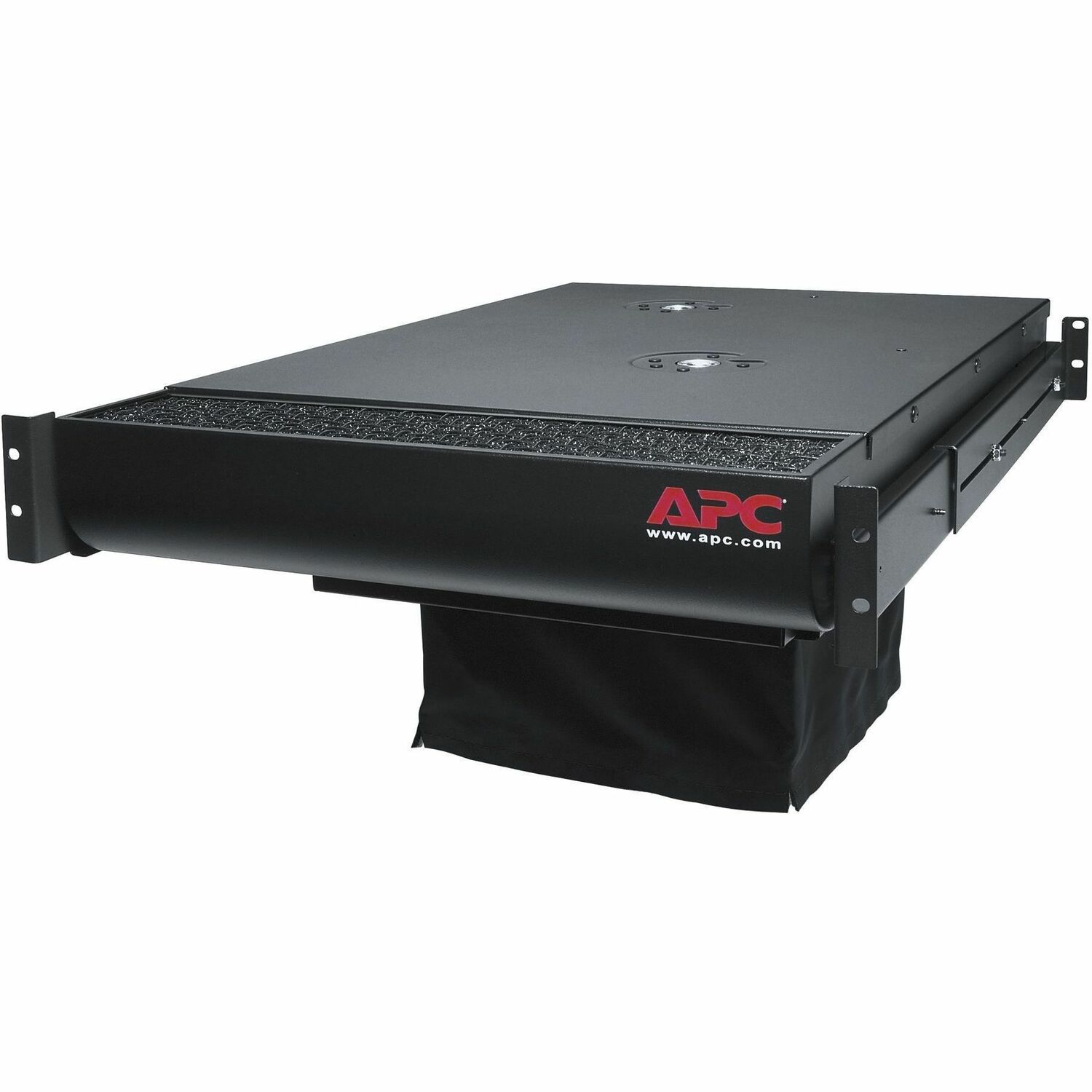

APC by Schneider Electric ACF001 Airflow Cooling System

Item #: APWACF001
Thumbnail image 1 of 4
Thumbnail image 2 of 4
Thumbnail image 3 of 4
Thumbnail image 4 of 4
Login for Pricing
Packaging: 1 Each
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
503 CFM - Black - 3500 W - Black - 2U - 120 V - 2 A - 240 W - 1 Each
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
ACF001
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Model
ACF001
Product Name
ACF001 Airflow Cooling System
Marketing Information

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.

Packaged Quantity
1 Each
Product Type
Airflow Cooling System
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Technical Information
Cooling Power Consumption
3500 W
Maximum Air Flow
503 CFM
Plug Type
NEMA 5-15P
Receptacle Type
IEC 60320 C13
Mounting Preference
Lower
Power Description
Input Voltage
120 V
Input Current
2 A
Power Consumption
240 W
Plug/Connector Type
IEC 60320 C13
Physical Characteristics
Compatible Rack Height
2U
Color Family
Black
Product Color
Black
Height
3.5"
Width
16.6"
Depth
29"
Weight (Approximate)
41.09 lb
Miscellaneous
Package Contents
  • ACF001 Airflow Cooling System
  • Rack Mounting brackets
  • User Manual
Certifications & Standards
UL Recognized
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758436&lang=en-us
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
2 Year
