StarTech.com

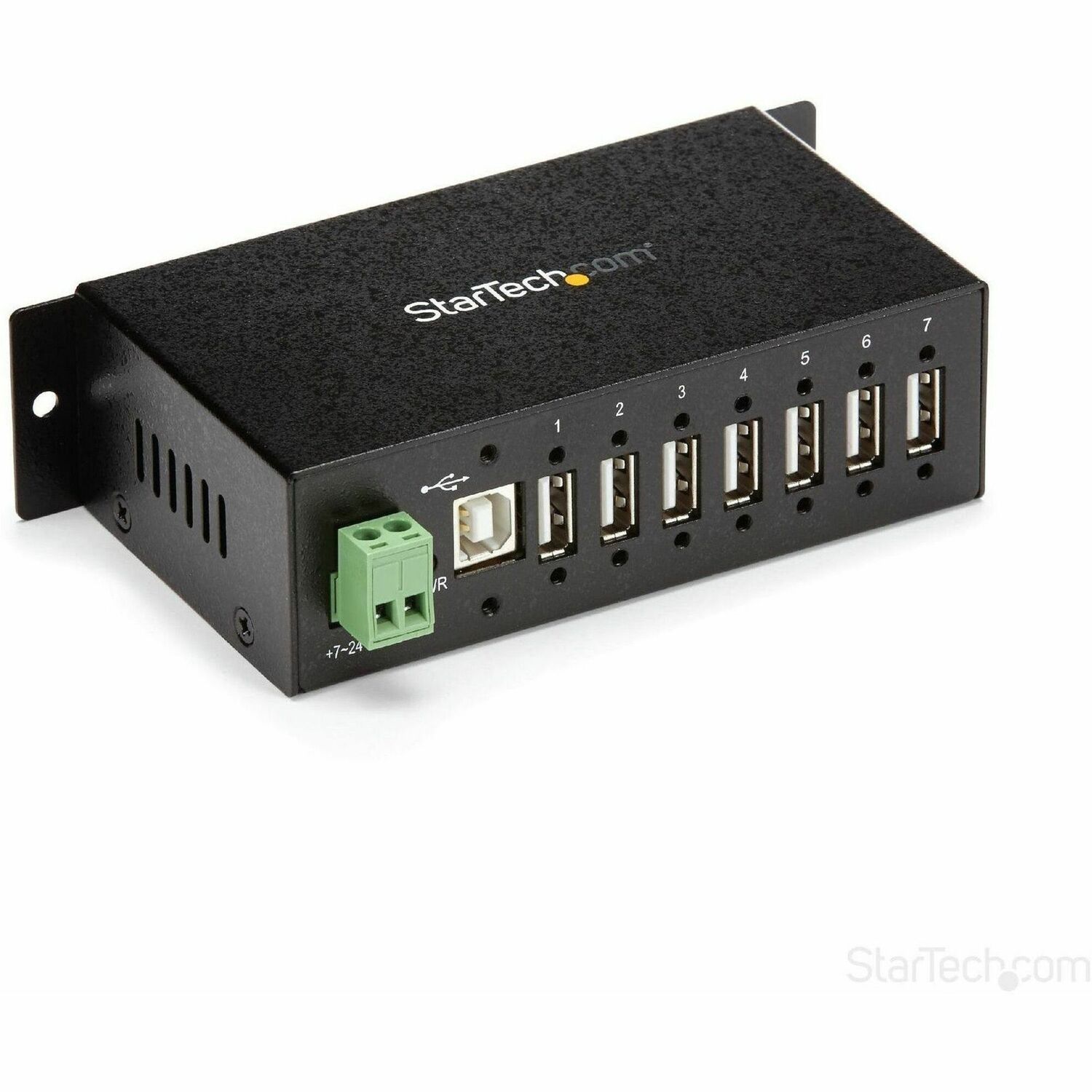

StarTech.com Mountable Rugged Industrial 7 Port USB 2.0 Hub

Item #: STCST7200USBM
Packaging: 1 Each
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
USB Type B - External - 7 USB Port(s) - 7 USB 2.0 Port(s) - PC, Mac - TAA Compliant

  • Protects your connected devices with 15kV Air and 8kV Contact ESD protection
  • Surge protection of 350W on the downstream and upstream USB ports
  • Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails
  • Offers flexible, wide-range power inputs with a 7-24V DC terminal block
  • Adds seven USB 2.0 ports from a single USB connection
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
ST7200USBM
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
Mountable Rugged Industrial 7 Port USB 2.0 Hub
Marketing Information

This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
USB Hub
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Technical Information
Host Interface
USB Type B
Media & Performance
Data Transfer Rate
480 MB/s
Interfaces/Ports
Total Number of USB Ports
7
Number of USB 2.0 Ports
7
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
External
Height
1.4"
Width
2.4"
Length
5.2"
Weight (Approximate)
9.98 oz
Miscellaneous
Package Contents
  • Mountable Rugged Industrial 7 Port USB 2.0 Hub
  • DIN Rail Mounting Bracket
  • 6 ft [1.8 m] USB-B w/Screw Lock to USB-A Cable
  • Screw Kit
  • Instruction Manual
Additional Information
  • A single USB host connection provides 7 additional USB ports with per port surge protection
  • Surface and DIN mounting options and terminal block power input to suit a wide range of industrial applications
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Platform Supported
  • PC
  • Mac
Country of Origin
Taiwan
TAA Compliant
Yes
Environmentally Friendly
Yes
2 Year
